Breakthrough: Non-Invasive Imaging Detects Plaque Buildup Early

Recent advances in non-invasive vascular imaging represent a major leap forward in cardiovascular medicine. For decades, clinicians identified coronary and peripheral artery disease only after patients developed severe symptoms.

Doctors frequently waited for chest pain, shortness of breath, or abnormal stress tests before ordering diagnostic procedures. Tragically, traditional invasive catheter angiograms carry procedural risks, including arterial bleeding, stroke, and vessel dissection.

Furthermore, standard stress testing often misses early soft plaques that do not yet block blood flow. These non-obstructive, lipid-rich plaques frequently rupture without warning, causing sudden heart attacks.

Fortunately, modern diagnostic radiology is helping to close these long-standing clinical blind spots. Cutting-edge technologies now evaluate vessel wall microstructures without requiring arterial punctures or hospital admissions.

Specifically, photon-counting computed tomography, high-resolution vascular ultrasound, and artificial intelligence image processing can reveal small plaque formations. These tools help detect lipid-rich cores, identify high-risk plaque features, and measure arterial wall inflammation in greater detail than older methods.

As healthcare systems expand access across the United States, the United Kingdom, Canada, and Australia, preventative cardiology is changing rapidly. Ultimately, clinicians can now identify silent arterial disease years before acute crises occur [1].

Invasive Angiography vs. Non-Invasive Vascular Imaging

Traditional Invasive Catheterization (Lumenography Model)

• Requires femoral or radial arterial puncture with catheter navigation
• Visualizes only the vessel lumen (Shadowgram); completely misses the arterial wall
• Cannot evaluate plaque composition, necrotic cores, or outward remodeling
• Carries procedural bleeding risks, radiation exposure, and hospital recovery time

Advanced Non-Invasive Vascular Imaging (Vessel Wall Phenotyping)

• Evaluates arteries externally via photon-counting CT, 3D ultrasound, and MRI
• Visualizes both the open lumen and internal tissue layers of the blood vessel
• Accurately quantifies low-attenuation lipid cores, calcium, and inflammation
• Delivers zero puncture risk, minimal radiation, and fast outpatient workflows

What Is Non-Invasive Vascular Imaging?

Non-invasive vascular imaging encompasses diagnostic technologies that map arterial anatomy, wall architecture, and blood flow without requiring arterial incisions. A healthy artery contains three organized layers: the inner tunica intima, the muscular tunica media, and the outer tunica adventitia.

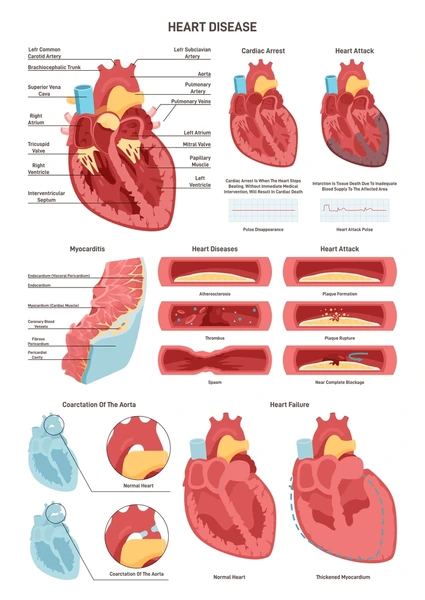

Atherosclerosis begins decades before a physical blockage appears. First, circulating low-density lipoproteins penetrate the inner lining, where macrophages consume oxidized lipids and form inflammatory foam cells.

During these early stages, arteries remodel outward to maintain normal blood flow, hiding the disease from conventional tests. Understanding arterial stiffness vs venous insufficiency shows how arterial wall stiffening damages microcirculation long before blockages form.

Modern imaging systems capture these early cellular changes using distinct diagnostic modalities:

• Photon-Counting Detector CT (PCD-CT): This platform converts individual X-ray photons directly into digital signals. Consequently, it delivers high spatial resolution with reduced calcium-induced blooming artifacts.
• Coronary CT Angiography with AI-QCT: Artificial intelligence models analyze contrast CT scans, measuring exact plaque volumes and categorizing tissues by density.
• High-Resolution Carotid Ultrasound: Clinicians measure carotid intima-media thickness (CIMT) and detect fragile carotid plaques using harmless sound waves.
• Contrast-Free Vascular Magnetic Resonance Imaging (MRI): Advanced MRI sequences image deep arterial walls without radiation or iodinated contrast dyes, pinpointing intraplaque hemorrhage.

By inspecting the arterial wall directly, non-invasive imaging can detect atherosclerosis, including non-obstructive disease, before it blocks blood flow [2].

Key Findings: The Latest Clinical Milestones

Over the past several years, large multicenter studies have changed cardiovascular risk stratification.

Pivotal Clinical Milestones in Non-Invasive Imaging

1. Photon-Counting CT Overcomes the “Calcium Shadow” Barrier

• Offers spatial resolution of up to about 0.11 mm in ultra-high-resolution mode
• Reduces calcified blooming, allowing better measurement of soft plaque
• Can lower radiation dose in several cardiac protocols compared to standard energy-integrating CT

2. AI Plaque Quantification Predicts Heart Attacks (The SCOT-HEART Trial)

• Measured Low-Attenuation Plaque (LAP) volume across a large patient cohort
• Identified plaque features linked to a higher risk of future heart attack

3. Perivascular Fat Attenuation Indexing (FAI via The CRISP-CT Study)

• Maps inflammatory changes in fat tissue surrounding coronary arteries
• Predicted cardiac death independently of calcium score and plaque burden

1. Reducing the Calcium Blooming Barrier with Photon-Counting CT

Historically, dense calcium deposits created bright starburst artifacts on standard CT scans. These visual distortions obscured the open lumen, preventing doctors from seeing whether soft, dangerous plaque lurked underneath.

Recent clinical studies show that photon-counting detector CT reduces this limitation [5]. By counting individual photons at multiple energy levels, the system helps visualize soft plaque right beside heavy calcifications.

Furthermore, several studies report that this platform lowers diagnostic radiation dose in some cardiac scans, with reductions ranging from roughly 20% to 75% depending on the protocol, although larger studies are still needed [5].

2. Identifying Vulnerable Low-Attenuation Plaque (LAP)

Large clinical studies show that total plaque composition matters far more than simple lumen narrowing. Non-invasive CT analysis measures low-attenuation plaque, which represents a necrotic, lipid-filled core:

• In the SCOT-HEART trial, patients with low-attenuation plaque burdens exceeding 4% were about five times more likely to have a heart attack.
• These vulnerable features predict adverse events regardless of whether an artery is significantly blocked.

Consequently, clinicians may be able to start preventative therapies earlier, before a vessel narrows dangerously [1].

3. Measuring Vessel Wall Inflammation via Perivascular Fat

The international CRISP-CT study found that the Perivascular Fat Attenuation Index (FAI) is a marker of coronary inflammation that predicts cardiac mortality. Inflamed arteries release cytokines that prevent surrounding fat cells from accumulating lipids.

Advanced CT algorithms detect these subtle fat density shifts around coronary vessels. Therefore, doctors may be able to identify actively inflamed arteries at higher risk, although prospective trials are still needed to show whether treating based on FAI improves outcomes [4].

How It Works: Detecting Plaque Before Vessels Narrow

Understanding how non-invasive imaging uncovers hidden vascular disease requires exploring the physics, computing, and biology behind modern diagnostics.

The Four Stages of Early Non-Invasive Detection

Stage 1: Ultra-Fast Data Acquisition

• Photon-counting detectors capture high-speed anatomical data during one heartbeat
• Motion-correction algorithms freeze cardiac movement cleanly

Stage 2: Multi-Energy Spectral Reconstruction

• Separates calcium, iodine, water, and soft tissue into distinct spectral maps
• Reduces calcified blooming artifacts to reveal the vessel wall

Stage 3: AI-Driven Plaque Characterization

• Deep learning algorithms segment the outer and inner arterial boundaries
• Quantifies calcified, fibrous, and lipid-rich low-attenuation volumes

Stage 4: Biological Stability Assessment

• Measures the “Napkin-Ring” sign, positive remodeling, and spotty calcification
• Flags vulnerable plaques for closer medical management

1. Spectral Multi-Energy Photon Resolution

Conventional CT detectors rely on scintillators that convert X-rays into light before turning them into electrical signals. This indirect process loses energy details and blurs image edges.

In contrast, photon-counting detectors use semiconductor sensors like cadmium telluride:

• The semiconductor converts X-ray photons directly into electrical pulses without light dispersion.
• Specialized microchips sort every photon into specific energy bins instantly.
• This direct conversion provides greater clarity, letting radiologists visualize tiny lipid pockets inside thin vessel walls.

2. Spotting High-Risk Plaque Architecture

Vulnerable plaques share specific anatomical features that non-invasive imaging can identify. Beyond measuring narrowing, software scans for the “Napkin-Ring” sign—a low-attenuation core surrounded by a thin ring of higher-attenuation tissue.

Additionally, software detects positive remodeling, where a diseased artery expands outward to conceal hidden plaque. Recognizing endothelial glycocalyx integrity and circulation may help explain how surface barrier breakdown permits inflammatory cells to build these unstable lesions.

3. Preserving Downstream Microvascular Perfusion

Atherosclerotic disease does not remain confined to large conduit vessels. Fragmented debris, micro-emboli, and inflammatory signals can damage downstream microcirculatory networks.

Non-invasive CT perfusion maps can show whether blood flow to areas of the heart muscle is reduced. Reviewing diabetic peripheral neuropathy triggers reveals how capillary rarefaction damages delicate tissues, highlighting why early vascular imaging protects overall health.

4. Tracking Plaque Regression Under Medical Therapy

In research studies, intensive cholesterol-lowering treatment can help stabilize dangerous plaques. In the PACMAN-AMI trial, adding the PCSK9 inhibitor alirocumab to high-intensity statin therapy led to greater plaque shrinkage and fibrous cap thickening after one year than a statin alone. Plaque changes in this trial were measured with invasive intravascular imaging, not CT:

• Total plaque volume fell more with alirocumab plus statin (−2.13%) than with statin alone (−0.92%).
• The lipid-rich core of the plaque shrank more with the combination treatment.
• The protective fibrous cap thickened more (about 63 µm vs 33 µm), which may make plaques less likely to rupture [6].

Why It Matters: Transforming Global Preventative Care

Cardiovascular diseases remain the leading cause of death worldwide, claiming an estimated 19.8 million lives in 2022 according to the World Health Organization[3]. Across the United States, the United Kingdom, Canada, and Australia, treating acute heart attacks places an enormous financial burden on hospital systems.

Expanding non-invasive vascular imaging delivers profound clinical advantages:

• Ending the Silent Disease Crisis: For many people, a heart attack or sudden cardiac death is the very first sign of heart disease. Early non-invasive imaging can detect hidden disease before symptoms appear.
• Reducing Unnecessary Invasive Procedures: Diagnostic catheterizations often find minimal disease, exposing patients to unnecessary puncture risks. Accurate non-invasive scans can help spare some patients from invasive hospital tests.
• Personalizing Preventative Drug Therapy: Instead of guessing cardiovascular risk using age and cholesterol charts alone, doctors can inspect the actual arteries. Imaging can help guide who benefits most from early, intensive therapy, but blood pressure, diabetes, and cholesterol still need to be managed according to medical guidelines.
• Protecting Whole-Body Microcirculation: Early arterial evaluation helps protect peripheral blood vessels. Reviewing walking speed vs step count shows how regular physical exercise supports vascular compliance throughout the body.

Challenges and Limitations: The Hurdles to Overcome

While non-invasive imaging provides remarkable diagnostic power, healthcare systems must resolve several technical, financial, and logistical challenges.

Current Limitations of Non-Invasive Vascular Imaging

1. Contrast Dye Exposure and Renal Function

• Iodinated contrast agents can stress fragile kidneys in advanced kidney disease
• Requires kidney function checks in at-risk patients to prevent contrast-induced nephropathy

2. Heart Rate and Rhythm Requirements

• Fast heart rates (>65 bpm) or irregular rhythms can blur standard CT scans
• Requires short-acting beta-blockers or rapid dual-source scanners

3. High Equipment Costs and Unequal Access

• Photon-counting CT scanners require substantial upfront capital investments
• Advanced scanners remain concentrated in major academic medical centers

4. Incidental Findings and Healthcare Anxiety

• High-resolution scans occasionally detect benign lung nodules or thyroid cysts
• Requires careful clinical follow-up to prevent unnecessary medical testing

1. Contrast Dye and Kidney Considerations

Coronary CT angiography requires an intravenous injection of iodinated contrast dye to light up blood vessels. In patients with severe chronic kidney disease, these contrast agents can strain kidney filtering units.

Consequently, clinicians must verify renal function before scanning. When kidney disease is advanced, doctors may choose a test that needs no contrast, such as a coronary calcium score, or use a different imaging approach.

2. Motion Artifacts and Elevated Heart Rates

Obtaining sharp coronary images requires freezing the heart between beats. If a patient experiences a rapid heart rate or irregular arrhythmias like atrial fibrillation, older CT scanners can produce motion blur.

To overcome this, clinical teams may give short-acting beta-blockers before imaging when it is safe for the patient. Modern dual-source scanners freeze motion in under 100 milliseconds, allowing doctors to image patients with faster heart rates, although irregular rhythms such as atrial fibrillation can still reduce image quality.

3. Equipment Costs and Geographic Availability

Photon-counting CT scanners and AI software platforms require significant capital investments. As a result, these cutting-edge platforms remain primarily in major university hospitals in urban centers.

Expanding access across public health systems—such as the NHS in the UK, Medicare in Australia, and provincial health plans in Canada—will require broader adoption and reimbursement support.

4. Over-Testing and Incidental Findings

Ultra-clear chest scans often capture benign incidental findings, such as tiny lung nodules, simple liver cysts, or harmless lymph nodes. These incidental discoveries can trigger patient anxiety and prompt unnecessary follow-up biopsies.

Radiologists and primary care physicians must communicate findings clearly, reassuring patients while focusing treatment on verified vascular risks.

What This Means for You: Taking Control of Your Vascular Health

If you have a family history of heart disease, elevated cholesterol, or metabolic risk factors, modern imaging allows you to assess your arteries proactively:

• Ask About Coronary CT Angiography: Discuss your preventative options with your physician. If you have borderline risk factors, inquire whether a Coronary Calcium Score or a contrast Coronary CT Angiogram is appropriate for your profile.
• Request Advanced Plaque Characterization: If you undergo a coronary CT scan, ask your cardiologist if the report evaluates plaque composition, low-attenuation lipid cores, or pericoronary inflammation.
• Combine Imaging with Blood Biomarkers: Diagnostic scans pair naturally with advanced blood testing. Reviewing blood test heart disease risk shows how tracking Apolipoprotein B (ApoB) and high-sensitivity C-reactive protein (hs-CRP) clarifies your overall cardiovascular health.
• Prioritize Daily Endothelial Health: Discovering early soft plaque should inspire positive lifestyle changes rather than panic. Review our guide on biohacking heart health for practical daily strategies that support healthy, flexible blood vessels.
• Discuss Treatment Options With Your Doctor: If scans reveal plaque, your doctor may recommend lifestyle changes and medicines such as statins to lower your risk. Reviewing drugs hacking metabolism for longevity shows how newer metabolic medications are being studied for their effects on cardiovascular risk.

Vascular Imaging Modality Comparison Matrix

To compare non-invasive diagnostic tools with invasive catheter procedures, review this clinical summary (values are approximate and vary by scanner and protocol):

Frequently Asked Questions (FAQ)

What is non-invasive vascular imaging?

Non-invasive vascular imaging refers to advanced diagnostic tests that visualize blood vessels without entering the body with surgical catheters. Technologies like photon-counting CT, carotid ultrasound, and vascular MRI allow clinicians to evaluate arterial walls, measure plaque, and assess blood flow safely from the outside.

How does a coronary calcium scan differ from a CT angiogram?

A coronary calcium scan is a fast, non-contrast X-ray that measures hard, calcified plaque in the heart arteries, producing an Agatston score. In contrast, a Coronary CT Angiogram uses an intravenous contrast dye to display both soft lipid plaques and hard calcium, showing whether an artery is actively narrowing.

Can non-invasive imaging detect soft plaques that cause heart attacks?

Yes. Modern CT angiography and photon-counting scanners can detect soft, non-calcified plaques. By identifying low-attenuation lipid cores and other high-risk features, these scans can find dangerous plaques before they grow large enough to block blood flow.

Is radiation from a vascular CT scan dangerous?

Modern non-invasive CT platforms use advanced detector hardware and AI image reconstruction to minimize radiation exposure. A contemporary coronary CT angiogram typically delivers roughly 1 to 5 millisieverts of radiation depending on the scanner and protocol, compared with about 2 to 3 millisieverts of natural background radiation that people receive each year.

Can early arterial plaque be reversed once detected on a scan?

While completely erasing extensive calcified plaque is difficult, intensive medical and lifestyle interventions can reduce soft plaque volume and make plaques more stable. Lowering circulating cholesterol and calming inflammation thickens the protective fibrous cap, making fragile plaques less likely to rupture [6].

Conclusion

The emergence of non-invasive vascular imaging marks an important shift in cardiovascular care: moving away from reactive crisis management toward early, proactive plaque detection. For many years, medicine relied mainly on symptoms and stress tests, which often missed early plaque and left many individuals vulnerable to sudden heart attacks.

Today, advanced photon-counting CT scanners, high-resolution ultrasound, and AI-powered image analysis allow clinicians to inspect the arterial wall safely from the outside. By identifying fragile lipid pools, spotty calcifications, and inflamed tissues early, doctors can intervene when treatment is most effective.

Furthermore, sparing some patients from invasive arterial catheterizations makes preventative care safer and more accessible. Combined with healthy daily habits—such as consistent aerobic exercise, balanced nutrition, and careful biomarker tracking—non-invasive imaging is a valuable tool in protecting against cardiovascular disease.

By identifying silent vascular disease early, modern imaging can help patients protect their arteries, lower their risk of heart attacks, and support long-term cardiovascular health.
